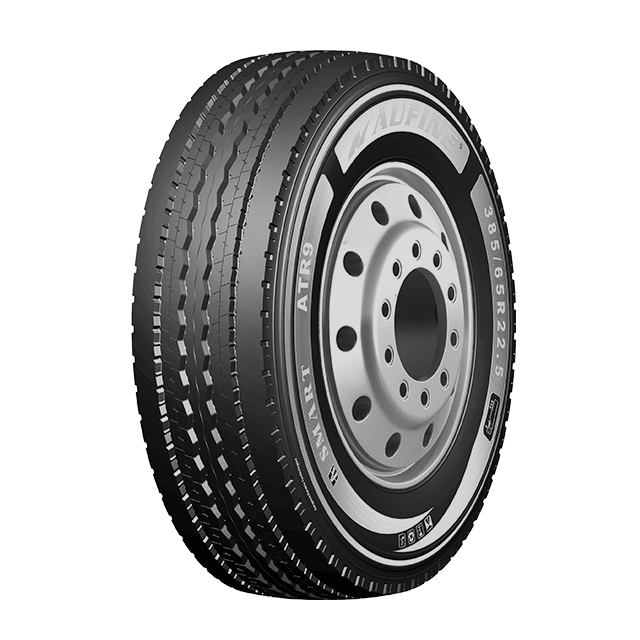

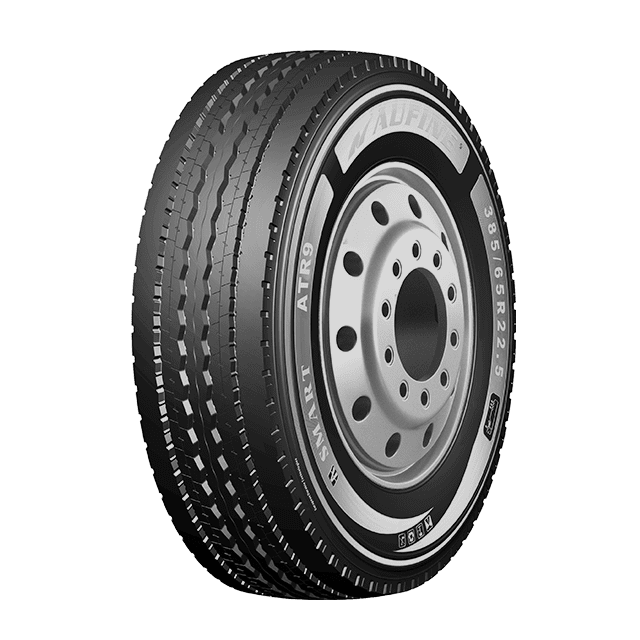

SMART ATR9

Trailer

Regional

Features

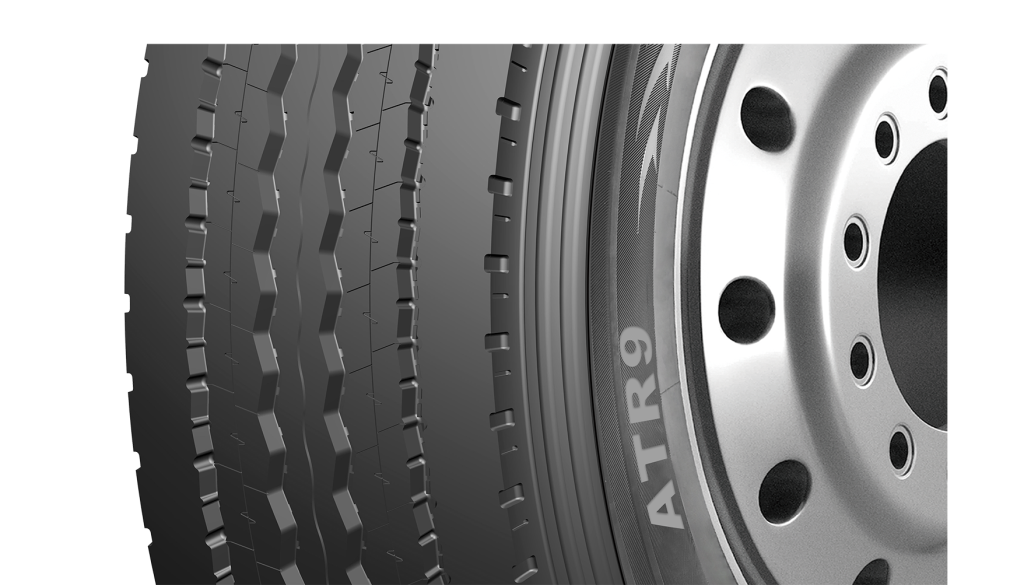

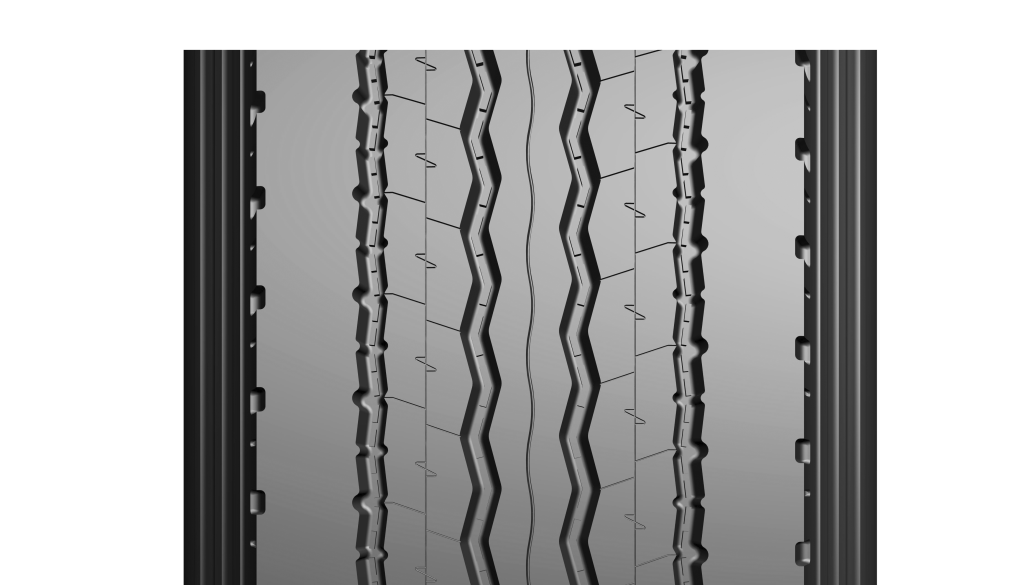

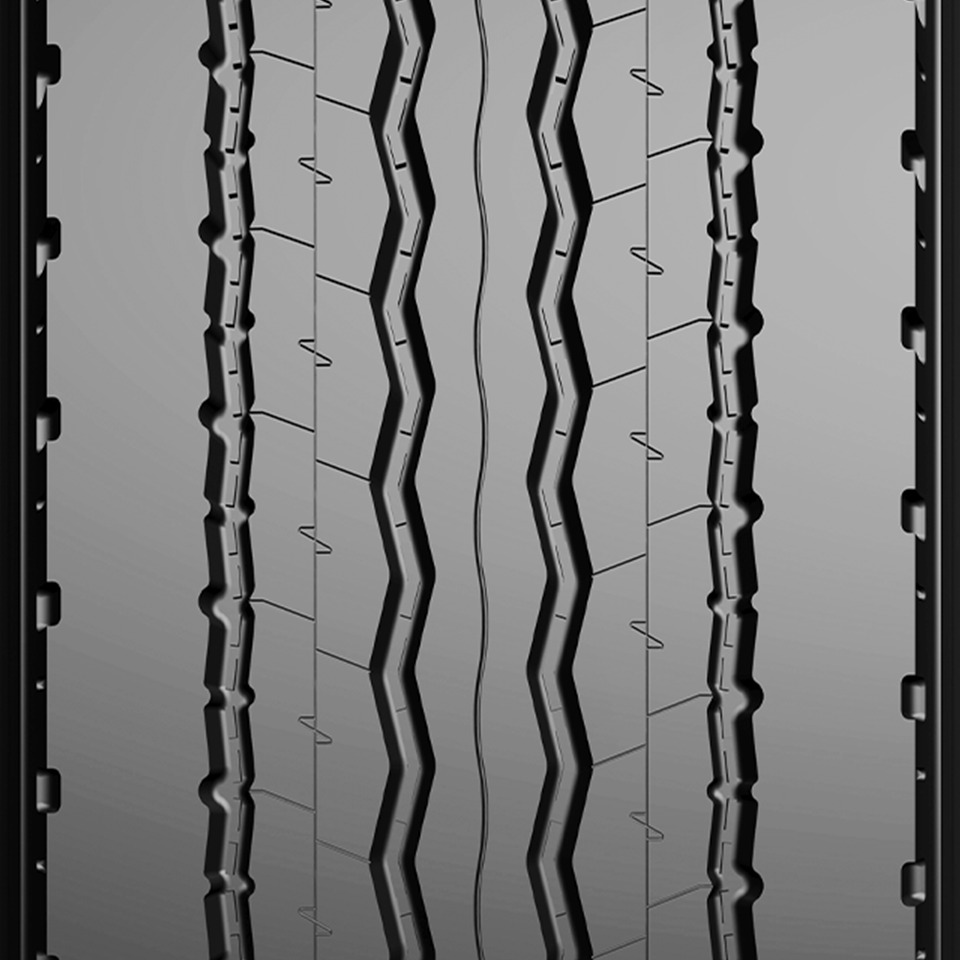

Optimized zig-zag central grooves promote steering precision and provide strong handling ability on both wet and dry roads.

Features

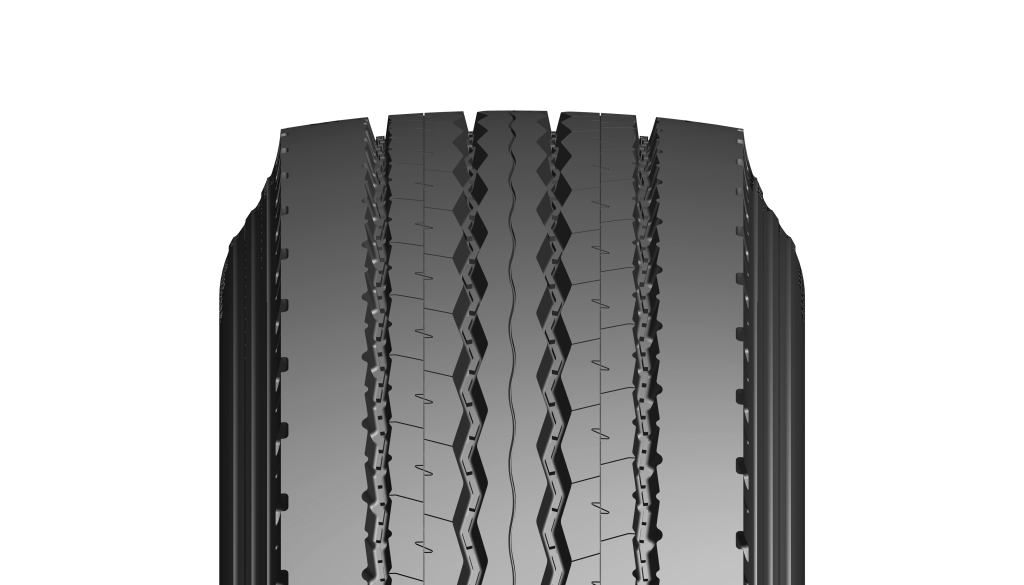

Widened tread shoulder design reduces rubber movement, ensuring optimal even wear.

Features

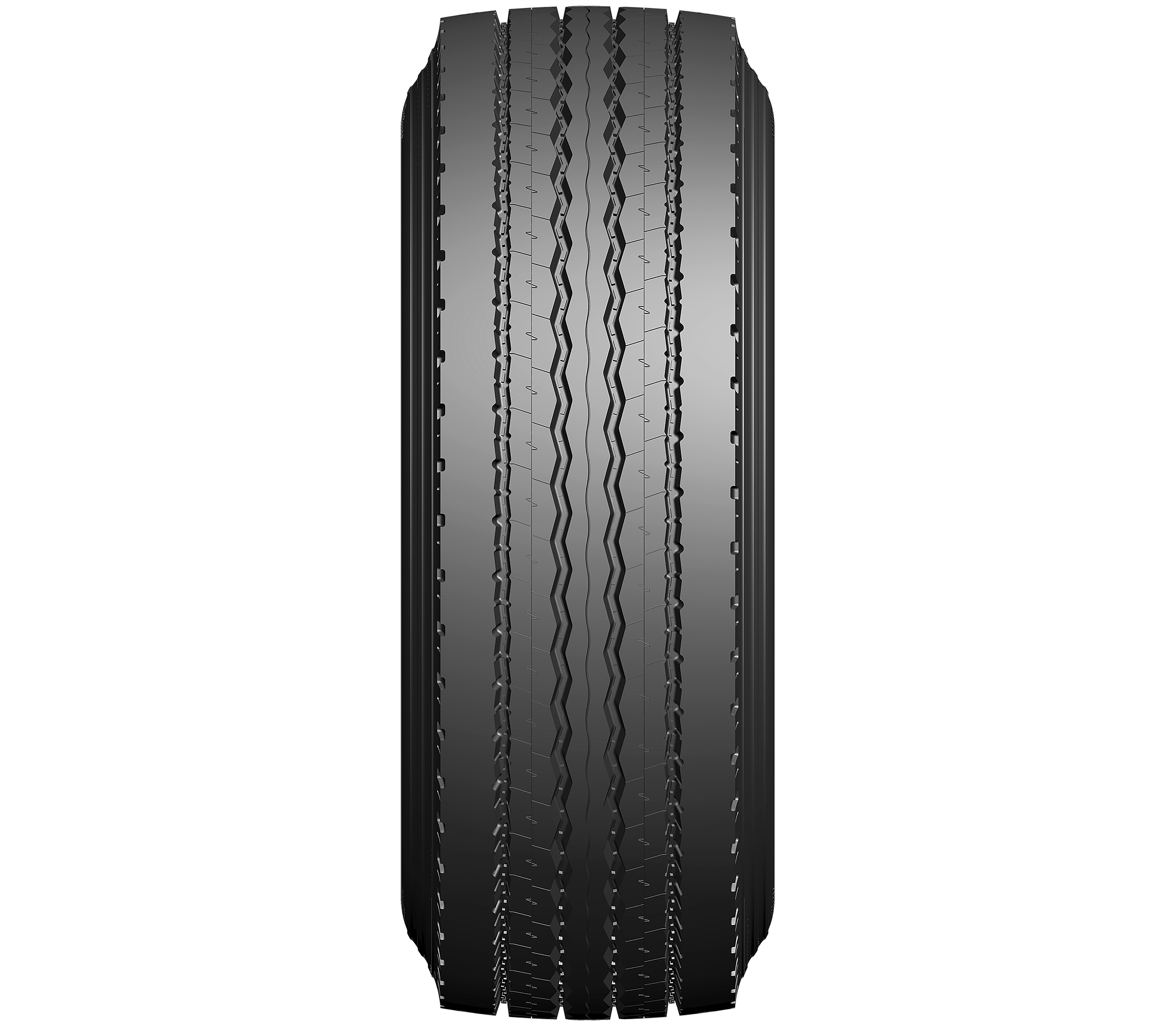

Wide footprint tread design promotes mileage.

Parameter

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Max Tire Load Single
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Ibs.	psi.	kg.	kPa.
385/65R22.5	24	N	164( 162 )	J(K)	62	11.75	11000	138	5000	950
385/55R22.5	24	N	164( 162 )	J(K)	62	12.25	11000	138	5000	950

size

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Max Tire Load Single
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Ibs.	psi.	kg.	kPa.
385/65R22.5	24	N	164( 162 )	J(K)	62	11.75	11000	138	5000	950
385/55R22.5	24	N	164( 162 )	J(K)	62	12.25	11000	138	5000	950
