SMART AEH9

Drive

Off Road

Features

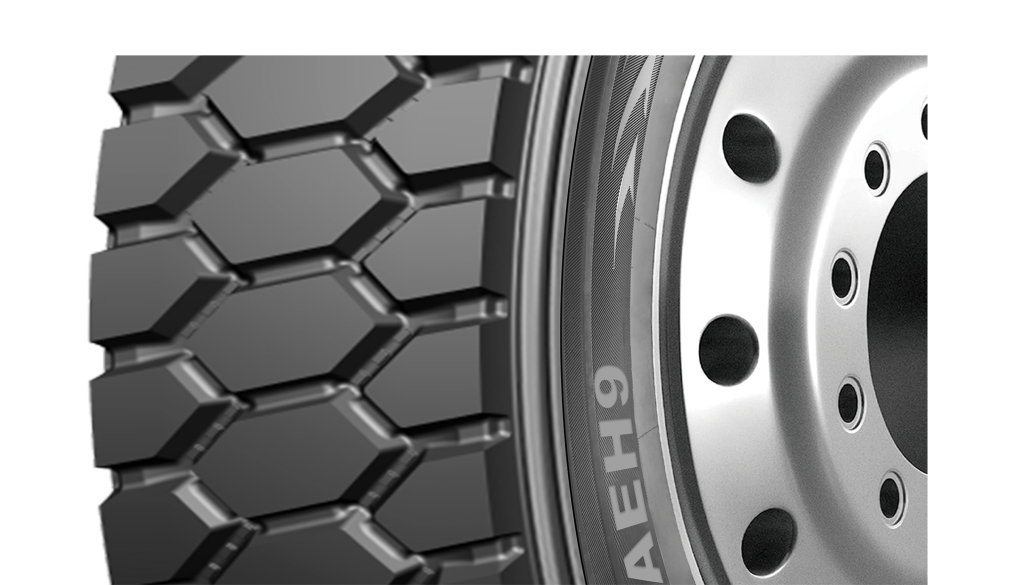

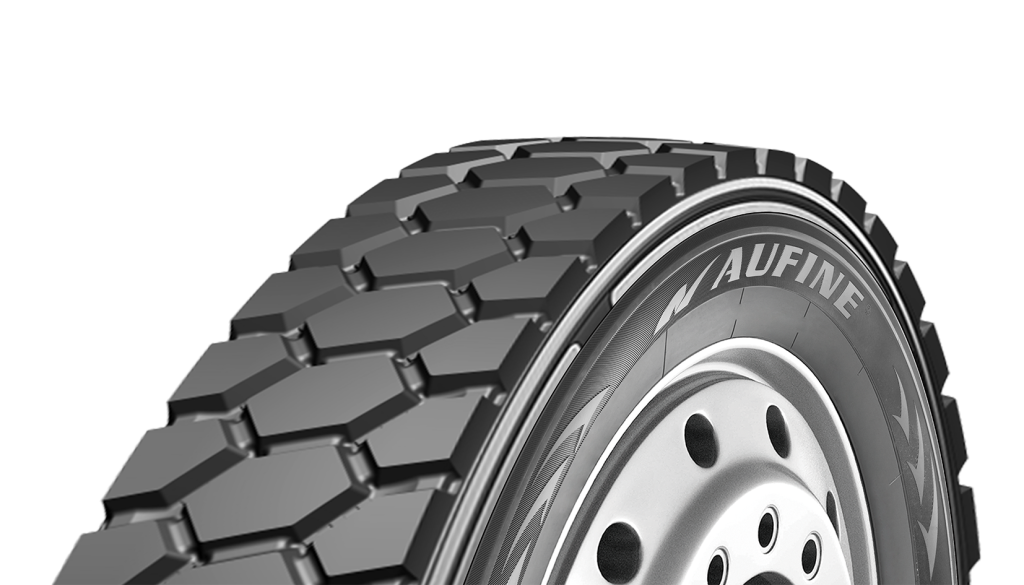

Big block pattern design provides excellent driving and gripping performance.

Features

Self-cleaning, open shoulder tread design helps enhance traction and flotation capabilities on varied terrains.

Parameter

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
11R22.5	18	J	149/146	F	50	8.25	7160	135	3250	930	6610	135	3000	930
12R22.5	20	L	154/151	F	50	9.00	8270	140	3750	970	7610	140	3450	970
295/80R22.5	20	L	154/149	F	50	9.00	8270	123	3750	850	7160	123	3250	850
11R24.5	18	J	152/149	F	50	8.25	7830	135	3550	930	7160	135	3250	930

size

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
11R22.5	18	J	149/146	F	50	8.25	7160	135	3250	930	6610	135	3000	930
12R22.5	20	L	154/151	F	50	9.00	8270	140	3750	970	7610	140	3450	970
295/80R22.5	20	L	154/149	F	50	9.00	8270	123	3750	850	7160	123	3250	850
11R24.5	18	J	152/149	F	50	8.25	7830	135	3550	930	7160	135	3250	930
