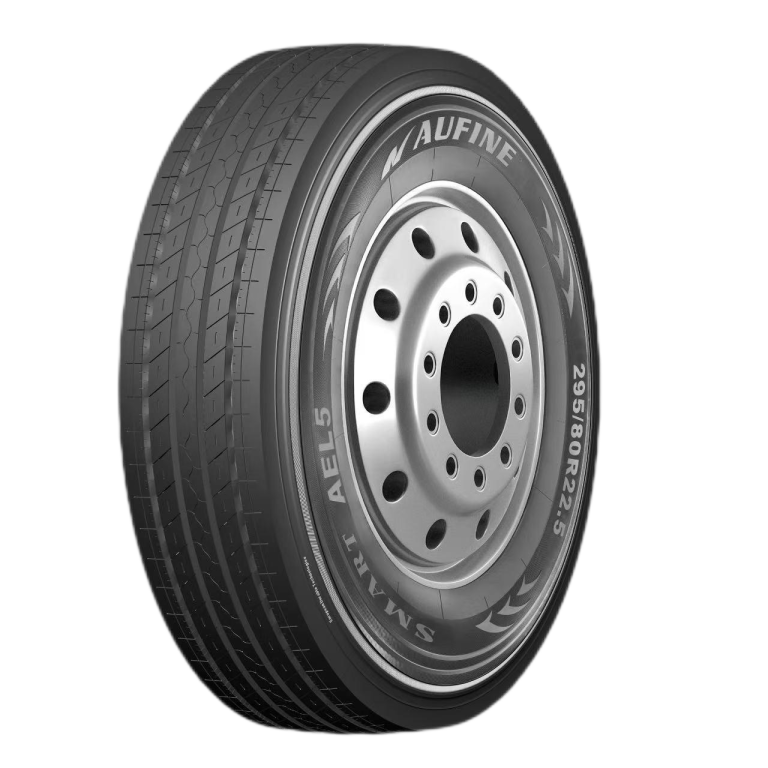

SMART AEL5

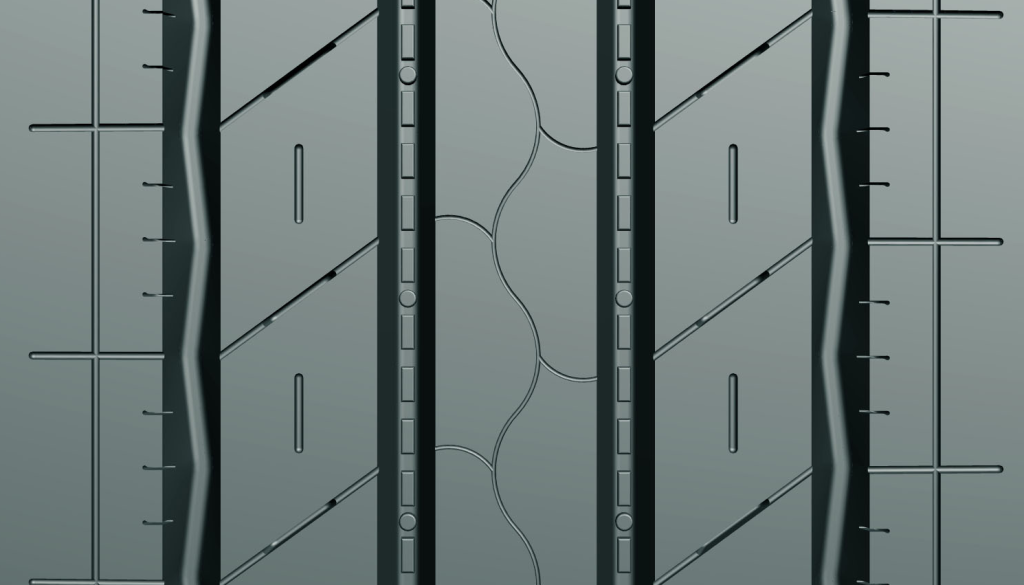

Bionic pattern design gives a good visual impact.

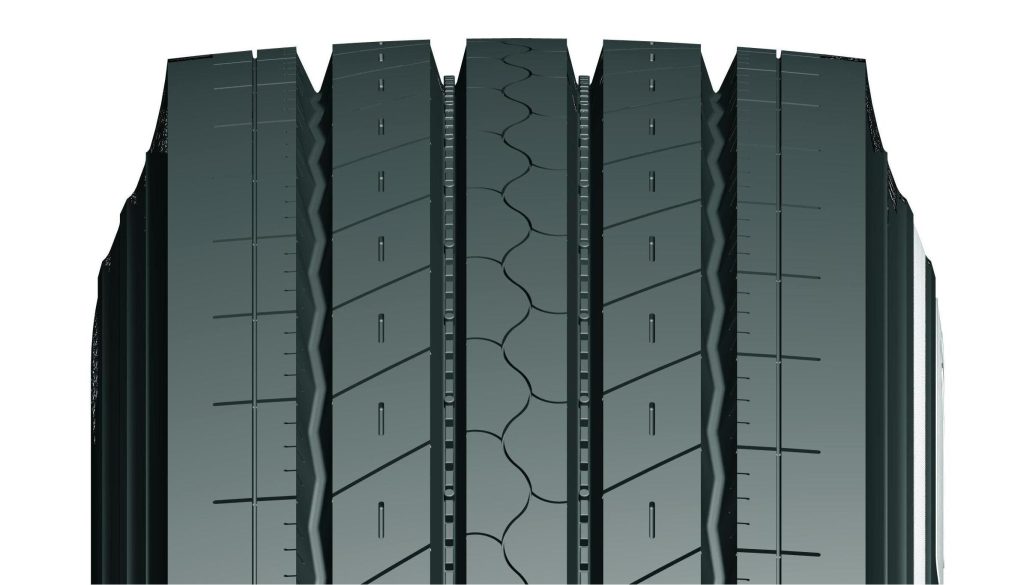

Wider tread and special shoulder contour ensure optimal even wear and higher mileage.

Optimized pattern pitch distribution, especially with stepped design, provides stronger handling wet grip and low-noise performance.

Parameter

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
6.50R16LT	12	F	110/105	L	75	5.50F	2340	97	1060	670	2040	97	925	670
295/80R22.5	20	L	154/150 (152/148)	L(M)	75	9.00	8270	123	3750	850	7390	123	3350	850
315/80R22.5	22	M	160/157 (157/154)	J(K)	62	9.00	9920	138	4500	950	9090	138	4125	950
325/95R24	22	M	162/160	K	68	9.00	10500	120	4750	830	9920	120	4000	830
385/65R22.5	24	N	164( 162 )	J(K)	62	11.75	11000	138	5000	950	——	——	——	——
385/55R22.5	24	N	164( 162 )	J(K)	62	12.25	11000	138	5000	950	——	——	——	——

size

ALL SIZES

Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Max Tire Load Single				Max Tire Load Dual
Size	PR	Load Range	Load Index	Speed Rating	Max Speed mph	Standard Rim	Ibs.	psi.	kg.	kPa.	Ibs.	psi.	kg.	kPa.
6.50R16LT	12	F	110/105	L	75	5.50F	2340	97	1060	670	2040	97	925	670
295/80R22.5	20	L	154/150 (152/148)	L(M)	75	9.00	8270	123	3750	850	7390	123	3350	850
315/80R22.5	22	M	160/157 (157/154)	J(K)	62	9.00	9920	138	4500	950	9090	138	4125	950
325/95R24	22	M	162/160	K	68	9.00	10500	120	4750	830	9920	120	4000	830
385/65R22.5	24	N	164( 162 )	J(K)	62	11.75	11000	138	5000	950	——	——	——	——
385/55R22.5	24	N	164( 162 )	J(K)	62	12.25	11000	138	5000	950	——	——	——	——
